160T Clamping Force Vertical Injection Molding Machine with Rotary Table and 1 Year Warranty

Name: 160T Clamping Force Vertical Injection Molding Machine with Rotary Table and 1 Year Warranty
Brand: JINTONG
Price: 53 USD

China 160T Clamping Force Vertical Injection Molding Machine with Rotary Table and 1 Year Warranty wholesale

Place of Origin : Guangdong, China

Model Number : JTT-1600R

Brand Name : JINTONG

MOQ : 1 piece

Price : $53,500-56,000 / piece

Plasticizing capacity : 400 g/s

Mold height : 260 - 530 mm

Ejector stroke : 75 mm

Ejector force : 34 kN

Shot volume : 570 cm³

Injection rate : 202 g/s

Injection weight : 513 g

Screw speed : 1 - 155 rpm

Screw diameter : 55 mm

Screw L/D : 28

Tie bar distance : 660 mm

Machine weight : 7000 kg

Open stroke : 500 mm

Power : 22 kW

Machine dimensions : 2.8*2.1*3.4 m

Contact Now

Product Description

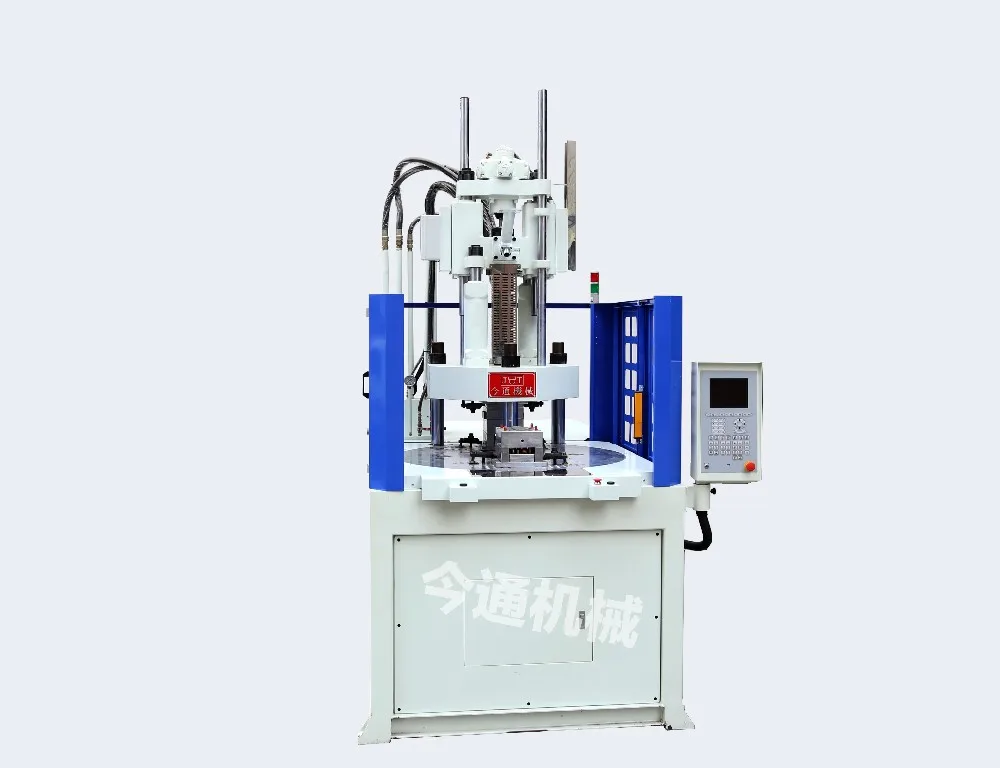

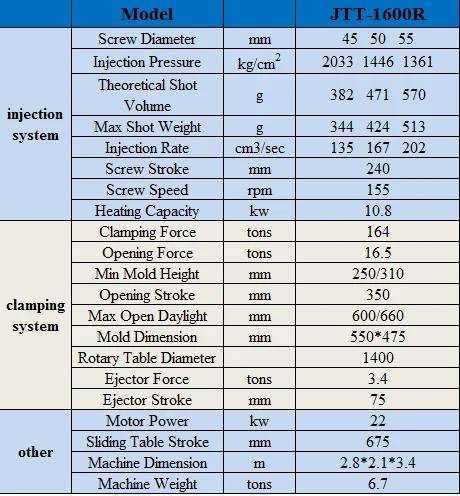

Vertical rotary injection molding machine JTT-1600R

Clamping Force: 160T

Injection Weight: 344-513g

Vertical clamping, vertical injection

Easy to set torque , speed, deceleration distance and stand number segmentation

Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.

Optional energy-saving motor

160T Clamping Force Vertical Injection Molding Machine with Rotary Table and 1 Year Warranty

Main Features

1) vertical clamping, vertical injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.

3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity

Certifications

Detailed Images

Our Service

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
